NEW – MIX-4000 MULTI-MODULES

stephanie — Tue, 04 Jul 2023 16:13:55 +0000

Mircom is proud to announce the release of our new MIX-4000 Multi-Modules. Designed to meet the growing demand for compact and space-efficient solutions, these state-of-the-art modules are set to transform the way you manage your installations.

Compact & Space-Efficient

We understand the importance of optimizing space in your installations. Our new Multi-Modules have been precisely engineered to be significantly smaller than other competitive models in the market, ensuring efficient utilization of your valuable space.

Easy Installation

Our Multi-Modules come with flexible mounting options that make installation a breeze. Using DIN Rails, you can easily install our modules without the need for additional tools or excessive labor effort, resulting in easy installation and time savings.

Compatibility & Freedom of Choice

We offer 2 and 6 module backbox enclosures for installation as well as an optional mounting bracket kit that gives you the freedom to choose an equivalent UL/ULC listed backbox enclosure that best suits your specific requirements, providing a seamless integration experience.

Expandability Made Easy

We understand that your systems may need to grow and expand over time. That’s why both our Input and Relay Multi-Modules support sub-addressing, enabling simple programming and hassle-free system expansion.

mutli-module models

MIX-4040-M MULTI INPUT MODULE

Supports either 6 Class A or 12 Class B inputs
Monitor 12 independent input circuits using only one module address
No EOL resistor required when input is in Class A operation

MIX-4045-M MULTI RELAY MODULE

Provides 8 form C (SPDT) contacts rated at 2A @ 30VDC or 0.5 @ 125 VAC
Each contact can be individually controlled by the FACU
All 8 form C contacts use only one module address through sub-addressing technique
Group Activation capability for fast reaction time

MIX-4070-M MUTLI ISOLATOR MODULE

Provides 8 isolator sections which are electrically isolated from each other
Allows the SLC loop to continue operating when a short circuit occurs on one section of the loop
Self-restoring capability on each section once a short circuit is removed

The post NEW – MIX-4000 MULTI-MODULES appeared first on Mircom.

MIX-M500-RAP/(A)AP relay devices

stephanie — Wed, 07 Jun 2023 13:53:43 +0000

Loop powering up trouble caused by revision change of MIX-M500RAP(A) Relay modules when used in the AP protocol.

Issue:
When powering up a loop that has a MIX-M500RAP(A) relay with date code TBD, it will cause the panel to go into a loop initialization fault. This issue is due to a design change, which deviates from published specifications made by System Sensor that is causing an adverse effect (bad checksum) fault the panels listed below.

Affected panels:

Panel	Firmware
FX-2000N ‘FleXNet’	12.2.30 (or lower)
FX-4000N ‘FleXNet MP’	1.11.X (or lower)
FX-3500	3.0.9
FX-3318	3.0.9

Solution:
Change the affected relay device listed above to the CLIP protocol or upgrade the Firmware of the panels to the following.

Panel	Firmware
FX-2000N ‘FleXNet’	12.2.40 (or higher)
FX-4000N ‘FleXNet MP’	1.12.0 (or higher)
FX-3500	3.0.17 (or higher)
FX-3318	3.0.17 (or higher)

Method:
Use the following steps to gather the data necessary to quickly identify if any of the MIXM500RAP(A) on your system are causing the issues listed above.

Use the following link to download Tera Term:
https://www.dropbox.com/s/ntiwmrio9ccwoey/teraterm-4.99.exe?dl=0
With Tera Term enable run a AP parameter report. See the link below for How to do this: https://www.dropbox.com/s/yxa2xkol0kk2j66/TeraTerm%20Connector%20Guide.pdf
Once the report is captured, send the report and a description of the trouble to the Mircom Applications email: [email protected]

Mircom strives to offer the highest quality products and services, on occasion an issue may require field action, and we regret when these issues arise. As part of our commitment to quality, we incorporate any findings into a continuous improvement process to better serve our customers in the future. As part of our support offering, please feel free to contact us with any inquiries or assistance you may require. If you have any questions or concerns, please contact the Technical Support Department at [email protected]

The post MIX-M500-RAP/(A)AP relay devices appeared first on Mircom.

MIX-2351AP/(A)AP Smoke Detector

stephanie — Wed, 07 Jun 2023 13:39:43 +0000

MIX-2351AP(A) device going into False Alarm or Auto Test fail.

Issue:
The MIX-2351AP(A) smoke sensor with a date code starting with “3” (e.g. 3021, 3032 etc) may cause the panel to go into false alarm or auto test failure depending on the firmware and panel the device is installed on. This issue is due to a design change, which deviates from published specifications made by System Sensor to the parameter value on the device itself that is causing an adverse effect on our panels listed below.

Affected Panels:

Panel	Firmware
FX-2000N ‘FleXNet’	12.1.xx
FX-4000N ‘FleXNet MP’	1.0.xx
FX-3500	3.0.9
FX-3318	3.0.9

Solution:
Change the device to CLIP protocol or Disable the Auto Test feature located in the job configuration file.

Method:
Use the following steps to gather the data necessary to quickly identify if any of the MIX- 2351AP(A) on your system is causing the issues listed above.

Use the following link to download Tera Term: https://www.dropbox.com/s/ntiwmrio9ccwoey/teraterm-4.99.exe?dl=0
In Tera Term, enable run an AP parameter report. See the link below for How to do this: https://www.dropbox.com/s/yxa2xkol0kk2j66/TeraTerm%20Connector%20Guide.pdf
Once the report is captured send the report and a description of the trouble to the Mircom Applications email: [email protected]

The post MIX-2351AP/(A)AP Smoke Detector appeared first on Mircom.

Mircom’s MPS-800 Series Pull Stations Voted As One Of The Best New Products of 2023, Receiving The Bronze Award

stephanie — Mon, 05 Jun 2023 12:59:51 +0000

Toronto, ON – June 1, 2023 – Mircom is proud to announce that its MPS-800 Series Pull Stations have been voted as one of the best new products of 2023 by subscribers of Consulting-Specifying Engineer. The MPS-800 Fire Alarm Pull Stations were awarded the Bronze Award in the Safety and Security Category in the Consulting-Specifying Engineer Product of the Year program. This recognition highlights Mircom’s commitment to innovation and excellence in the fire safety industry.

The UL/ULC listed MPS-800 Series provide manual fire alarm activation for addressable and conventional fire alarm systems. Constructed of high-quality polycarbonate resin thermoplastic “LEXAN”, these pull stations possess exceptional durability and are engineered to withstand high temperatures without deformation. The robust construction ensures consistent performance even in the most demanding environments.

In alignment with the Americans with Disabilities Act (ADA), Mircom has prioritized accessibility in the design of the MPS-800 Series Pull Stations. The pull stations can be effortlessly operated with a closed fist, ensuring compliance with ADA regulations. Additionally, the use of raised symbols and icons, rather than printed text, guarantees universal recognition, making it suitable for a wide range of applications including schools, shopping malls, hospitals, and various other commercial settings.

The Consulting-Specifying Engineer Product of the Year program is widely regarded as the premier award for new products in the mechanical, fire/life safety, electrical, lighting, plumbing, and related nonresidential building systems market. With its annual reader-choice format, the program provides Consulting-Specifying Engineer’s audience with valuable insights into the top new products in their respective fields. Celebrating its 18th year, the program continues to showcase cutting-edge solutions that shape the future of the industry.

Mircom takes immense pride in being recognized with the Bronze Award for the MPS-800 Series Pull Stations. This accolade serves as a testament to the company’s unwavering dedication to delivering exceptional fire protection solutions that meet the highest standards of quality, reliability, and usability.

For more information about the award-winning MPS-800 Series Pull Stations and Mircom’s comprehensive range of advanced fire protection solutions, please visit mircom.com.

About the Mircom Group of Companies

The Mircom Group of Companies is a global designer, manufacturer, and distributor of intelligent building solutions, bringing innovation and flexibility to the industry. With a presence in over 100 countries worldwide, our commitment to technological advancement enables us to offer high-quality and competitive value solutions in Fire Detection & Alarm, Communications & Security, Mass Notification, and Building Automation & Smart Technologies. Our solutions are independently engineered in North America and tailored to our clients’ unique needs and their customers.

The post Mircom’s MPS-800 Series Pull Stations Voted As One Of The Best New Products of 2023, Receiving The Bronze Award appeared first on Mircom.

RPL-LK-711-NY REPLACEMENT LOCK- USA

stephanie — Mon, 24 Apr 2023 13:20:50 +0000

Dear Valued Customer,

We are happy to announce that our replacement lock RPL-LK-711-NY is now available. This lock is for the installation of our fire alarm control panels in New York.

Product Information

Please see Installation Instructions LT-6746.
We thank you for your continued support. If you have any questions or comments, please contact us directly at: [email protected]

Best Regards,
Nawar Almaasarani
Product Manager
Mircom Group of Companies
Vaughan, Ontario, Canada, L4K 5W3

The post RPL-LK-711-NY REPLACEMENT LOCK- USA appeared first on Mircom.

2022 Product Release Summary

stephanie — Mon, 09 Jan 2023 20:32:37 +0000

mix-4000 series INTELLIGENT DEVICES AND PROTOCOL

MIX-4003-S SOUNDER BASE

The MIX-4003-S sounder base provides localized alarm sounding capability for the MIX-4000 family of fire detection devices.

It can be used in place of external sounders to minimize installation cost and footprint while allowing individual control of signal rate and on-off state for each device.

The MIX-4003-S must be used with a compatible MGC control panel. Operational mode and levels are selected at the fire alarm panel through the MGC MP configuration tool.

Features:

Multiple options of tone patterns
Three-pulse temporal pattern fire alarm signal required by NFPA 72
Two volume levels: low and high

MIX-4003-R RELAY BASE

The MIX-4003-R relay base provides one form C (SPDT) contact rated at 2A at 30Vdc, or 0.5A at 125Vac and a compatible panel can switch discrete contacts by command.

Circuit connections to the relay contacts are not supervised by the base. The MIX-4003-R supports group activation capability for fast reaction time.

The MIX-4003-R must be used with a compatible MGC control panel. The device can control one independent circuit while using one address.

Features:

Compatible with isolated and non-isolated detectors
Designed to meet UL268/ULCS529 requirements for smoke detectors
Designed to meet UL521/ULC S530 requirements for heat detector

mps-800 series manual pull stations

Mircom’s MPS-800MP(U) Series Fire Alarm Manual Pull Stations provide manual fire alarm activation. In compliance with the Americans with Disability Act (ADA), the pull station can be operated with a closed-fist and uses raised symbols and icons instead of printed text for universal recognition.

Constructed of high quality polycarbonate resin thermoplastic “LEXAN”, these devices can support high temperatures without deforming.

The pull stations can be mounted on a single gang backbox with wiring accessible from the front, making it easy to install.

CONVENTIONAL MANUAL PULL STATIONS

Features:

Available as single stage dual action
Completely made of LEXAN material
Temperature range from -40ºC ~ 66ºC (-40ºF ~ 150ºF)
Closed-fist operation (ADA – Americans with Disability Act)
Symbols are raised to be recognized by touch
Mounts on a single gang backbox
Accessible from the front for wiring while mounted making it easy to install
Indoor/Outdoor use

ADDRESSABLE MANUAL PULL STATIONS

Features:

Available as single or two stage dual action
Compatible with FX-400 Series and FleX-Net FX-4000N Fire Alarm Panels
Completely made of LEXAN material
Temperature range from 0ºC ~ 49ºC (32ºF ~ 120ºF)
Closed-fist operation (ADA – Americans with Disability Act)
Symbols are raised to be recognized by touch
Mounts on a single gang backbox
Accessible from the front for wiring while mounted making it easy to install
Alarm LED is viewable from the front for easy trouble shooting
Indoor use only

INTELLIGENT MODULES

DSPL-2440DS GRAPHIC DISPLAY MODULE

The DSPL-2440DS Main Display Module provides 24-line x 40-character backlit LCD display for the FleX-Net Series.

This module was designed with high resolution and improved contrast, making it easily readable in different lighting conditions.

This main display offers a user-friendly menu, displaying all messages for service and common control buttons with selector switches and LEDs for System Reset, Signal Silence, Fire Drill, Acknowledge, General Alarm, Lamp Test, A.C on, Pre-Alarm and Ground Fault.

Features:

For service, display shows all messages
Backlit display and user-friendly Menu
Common Control buttons with selector switches and LEDs
Four Status Queues: Alarm, Supervisory, Trouble and Monitor

FDX-008W/KI FAN DAMPER MODULES

Connected to the main display or remote shared display, the fan damper modules provide automatic control of fans and/or dampers based upon smoke detector inputs. LEDs can be setup to monitor the progress of the smoke in the same manner as on a standard fire alarm display.

Features:

FDX-008W provides switch control and LED indication of 8 fan damper zones
FDX-008WKI provides switch control of 7 fan damper zones with terminals for a key switch
Compatible with FleX-Net & FX-2000 Fire Alarm Control Panels
Tested and approved under the following standards UL 864, ULC S527, NFPA 72, 101, 90A, 92, (Smoke Control Category)

INTELLIGENT booster power supply

INX-10A & INX-10AC

The INX-10A(C) extends the power capabilities of existing notification appliance circuits as well as provides power for other ancillary devices.

Features:

Works as NAC expander of any UL/ULC listed 24VDC conventional fire alarm control panel
10 Amp output
120V 60Hz / 240V 50Hz operation
Five Class B (Style Y) or Class A (Style Z) synchronized output circuits
2.5 Amp max. current per output
INX-10AC Mounts into the BB-5008 or BB5014 enclosure

Enhancements:

Works on the addressable initiating circuit (SLC/ DCL) of the listed compatible Intelligent fire alarm control panels
Compatible with the following panels: FX-4000N Series, FX-2000N Series, FX-2000 Series, FX-401, FX-400, FX-3500 & FX-3318
Supports multiple intelligent protocols, MGC Protocol plus Classic Loop Interface Protocol (CLIP)

WIRELESS NETWORK FIRE ALARM

FIRE-LINK3

Mircom’s Fire-Link3 offers a fast, clean and cost effective wireless fire alarm audible signaling solution for multi-residential buildings that are in need of a fire alarm audibility upgrade.

Inter-device communications is accomplished wirelessly using an extremely robust and secure mesh network technology. The two main system components are the Zone Controller (ZC) and the Wireless Input-Output unit (WIO). The Zone Controllers can be daisy chained and installed one per floor in the building. Zone Controllers can be connected using either addressable loops or NAC (bell) circuits to the Fire Panel.

Features:

Compatible with the following Mircom fire alarm control panels FleX-Net, FX-2000, FX-3500, FX-3318, FX-4000N, FX-400/401 and Secutron MMX, MR-3500 and MR-3318 that have addressable SLC loops using addressable devices in CLIP mode only
Connects to any fire alarm panel with conventional contacts
Wireless connection to notification devices
Supports Single and Two stage notification
Battery backup
Configurable Trouble, AC Fail, and alarm relay outputs
UL 864 / ULC S527 Listed

NETWORK FIRE ALARM & EMERGENCY COMMUNICATION

FX-MNS-6000

Mircom’s FX-MNS-6000 Network Fire Alarm and Emergency Communication system offers modular components for network systems providing a wide variety of applications. This fire alarm and audio system provides zoned emergency multi-channel digital audio with emergency paging and fire evacuation.

Features:

Supports up to 10 audio cabinets (1 main plus 9 expansion audio cabinets) per node
Maximum of 575 Watts per expansion cabinet and total wattage of an audio cabinet per node is up to 5575W (400W + 9 X 575W)
Up to 100 audio zones per node, 4788 audio amplifiers per Network system
Based upon proven technology of FleX-Net and utilizes many FleX-Net modules
Introduces digital amplifiers for a clearer and crisper sounding audio
Flexible modular 25 Volt and 70 Volt amplifiers with options of audio wattage combinations per amplifier (1 X 100W, 2 X 50W, 1 X 75W + 1 X 25W, 4 X 25W)
More powerful per amplifier module of up to 100W per amplifier module compared to 60W per amplifier module in Mircom’s QX-5000 audio systems
Distributed audio system for brand new systems as well as existing systems’ expansion
Distributed audio allows the customer to distribute audio expansion cabinets throughout the fire alarm system without adding an additional node
Four audio Channels EVAC, Alert, Paging and External Audio
Supports 24-hour background music from external audio source and each amplifier can play back on a separate audio channel

GRAPHICS SOFTWARE SYSTEMS

OPEN GRAPHIC NAVIGATOR - VERSION 3.7

Open Graphic Navigator (OpenGN) is a centralized building management software that provides building or campus monitoring. As a powerful integration tool, OpenGN allows operators to monitor and control multiple fire and security networks remotely.

With unparalleled graphical experience in 2D and 3D modeling, OpenGN quickly identifies the event location by building and floor, and allows for precise route planning for first responders.

Enhancements:

FleX-Net FX-4000N 1.2.4 support
FleX-Net FX-2000N 12.2.30 support
Standardized Industrial Computers
Integrate with Legacy Fire Control Panels

TX3 SERIES VOICE ENTRY & ACCESS CONTROL

TX3-TOUCH-S22-E TOUCH SCREEN TELEPHONE ACCESS

Mircom’s 22″ Touch Telephone Access System is designed to provide a visually stunning and intuitive user-experience.

Enhancements:

22″ full color touch display provides ultra-wide viewing angles, sure to impress visitors and occupants alike
2000 name capacity
TCP/IP capability to remotely program & maintain the system
Built-in HD web camera for video communication to the suite
Built-in Wiegand proximity reader; 125 kHz
Optional high definition AXIS IP Camera
Provision for postal lock
Wheelchair Accessible – Lowered control keys make the keyboard easier to reach, complying with ADA requirements

TX3 TOUCH SOFTWARE - VERSION 2.13.11

The TX3 Touch software version 2.13.11 is updated to support “-256 no IP” lobby board that is installed inside the TX3 Touch unit.

The latest TX3 Touch software version 2.13.11 is compatible with the following TX3 Touch Panels:

TX3-TOUCH-S15B-WR
TX3-TOUCH-S15S-WR
TX3-TOUCH-F22-E
TX3-TOUCH-S22-E
TX3-TOUCH-F15-D
TX3-TOUCH-S15-D

Enhancements:

Added Network Firmware upgrade support for “-256 no IP” lobby board that is installed inside the TX3 Touch unit.

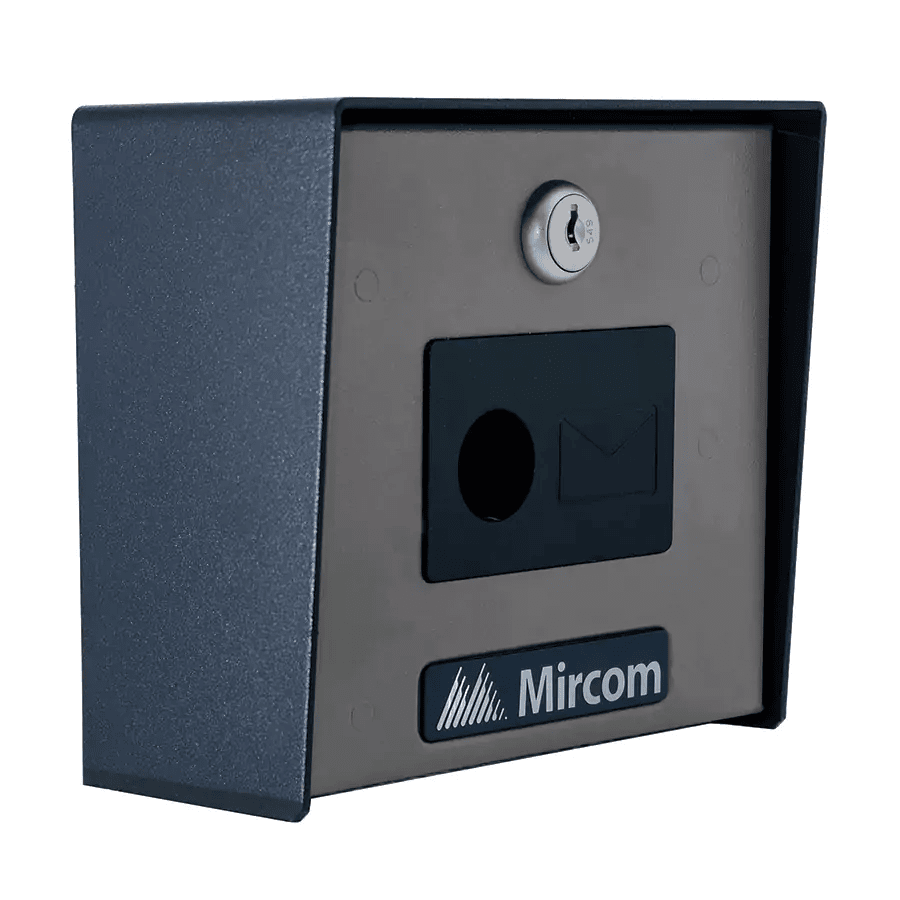

TX3-PL-ENCL POSTAL LOCK ENCLOSURE

TX3 Postal Lock Enclosure permits the postal worker to use their key to enter the building when used with a Post Office supplied postal lock.

TX3-PL-ENCL mainly serves as an outdoor model, compatible with TX3 Touch Panels, TX3 Nano and TX3 Telephone Entry Panels.

Features:

A built-in rain hood, piano hinges at the bottom of the door and has provisions for a postal lock to be installed
Constructed of a heavy gauge stainless steel
Built for both outdoor and indoor applications

ELEVATOR RESTRICTION

3012E RELAY CARD

The 3012E Elevator Restriction Relay Card plugs into the Backplane portion of the TX3-ER-8-B Elevator Restriction Unit.

A total of eight 3012E Elevator Restriction Relay Cards mount into each TX3-ER-8-B Unit for a total of 96 elevator restriction relays. Each relay is assigned to a specific floor selection button.

Each relay can be configured as Normally Closed or Normally Open. By default, the relays are normally open. In addition, each relay can be configured individually for AC or DC operation. By default, the relays are configured for DC.

Enhancements:

The new 3012E model has a higher relay contact rating and it has the capability to be wired to both AC and DC circuits.
Each 3012E has 12 Form C relay contacts with the following ratings:
- 220 VDC @ 0.24 A
- 250 VAC @ 0.25 A
- 30 VDC @ 2 A

TX3 PRODUCTS WITH -256 SUFFIX

Due to the pandemic, the global supply chain has been impacted in ways not experienced by the world in the past. Essential raw materials are difficult to obtain and there is a pronounced shortage of workers in manufacturing centers and logistic companies. The impacts we face include slow, postponed and short deliveries from supply partners.

One part that has been a particularly difficult sourcing challenge for Mircom is a critical microchip used in a number of our TX3 products. As a result, affected items (Old Model Numbers) have been placed on temporary hold for indeterminate period.

The alternative part numbers with -256 suffix (New Model Numbers) are available for ordering.

Please refer the Product Update Bulletin and Manual for more info.

CONFIGURATION & MONITORING SOFTWARE

TX3-CONFIGURATOR - VERSION 2.13.11

TX3 Configuration and Monitoring Utility is a powerful configuration and monitoring tool for both TX3 series Voice Entry and Card Access systems.

Features:

Multiple control panels in the same job file
Both Voice Entry and Access Control database in the same job file
Auto backup
Free upgrades
English and French language support

Enhancements:

Added support for “-256 no IP” panels
Added support for external IP Gateway unit

BUILDING AUTOMATION SOFTWARE

SYSTEM DESIGN STUDIO - VERSION 1.3.0

The System Design Studio is a powerful Windows based configuration tool for OpenBAS controllers.

Features:

Ability to configure every aspect of an OpenBAS system including Communication settings, PLC logic, Schedules and Trends
The PLC logic can be configured with both a drag and drop, ladder logic style interface as well as an English based scripting language
Works with the OpenBAS building automation systems to provide more: Control, Value and Efficiency

Enhancements:

Save time and view live values directly in the logic tab
Improve your workflow with offline logic editing and upload all your changes at once
Newly added debug point feature (break point feature)
Optimize your fieldbus with newly added Fieldbus Statistics window
Added standalone OPENBAS-NWK-ETH3 support including the logic tab (ladder editor)
Script compiler improvements:
- New Declare keyword preventing point names from saving on the controller
- New Online keyword for remote point status detection
FX-3500 and FleX-Net printer protocol support on OPENBASNWK-ETH3

SYSTEM MANAGEMENT STUDIO - NIAGARA 4.10U4

The System Management Studio (Powered by Niagara framework) is an industry standard Building Management System framework that enables facility managers to manage their buildings at an enterprise level.

Allows multiple gateways, controllers and 3rd party IP based field controllers to be networked together using common protocols such as BACnet/IP and MODBUS TCP
Comes with a powerful dashboard and graphic design tools and serves them through any web browser which gives the ability to quickly respond to issues & optimize their systems
System analytics, advanced trending and alarms & advanced scheduling

Enhancements:

Windows 11 support is now available
System Database Support for Tag-based Px which dramatically decreases the amount of time to integrate remote Niagara Network stations into a Supervisor.
Improved Graphics Performance on the JACE to achieve faster graphics load time and enable instantaneous feedback on changing values
HTML-5 Tag Manager provides features such as bulk tagging via a browser, context sensitive tagging, seamlessly viewing direct and implied tags, exporting all tags to a spreadsheet for templating and ongoing management, drag-n-drop functionality, and more!

The post 2022 Product Release Summary appeared first on Mircom.
