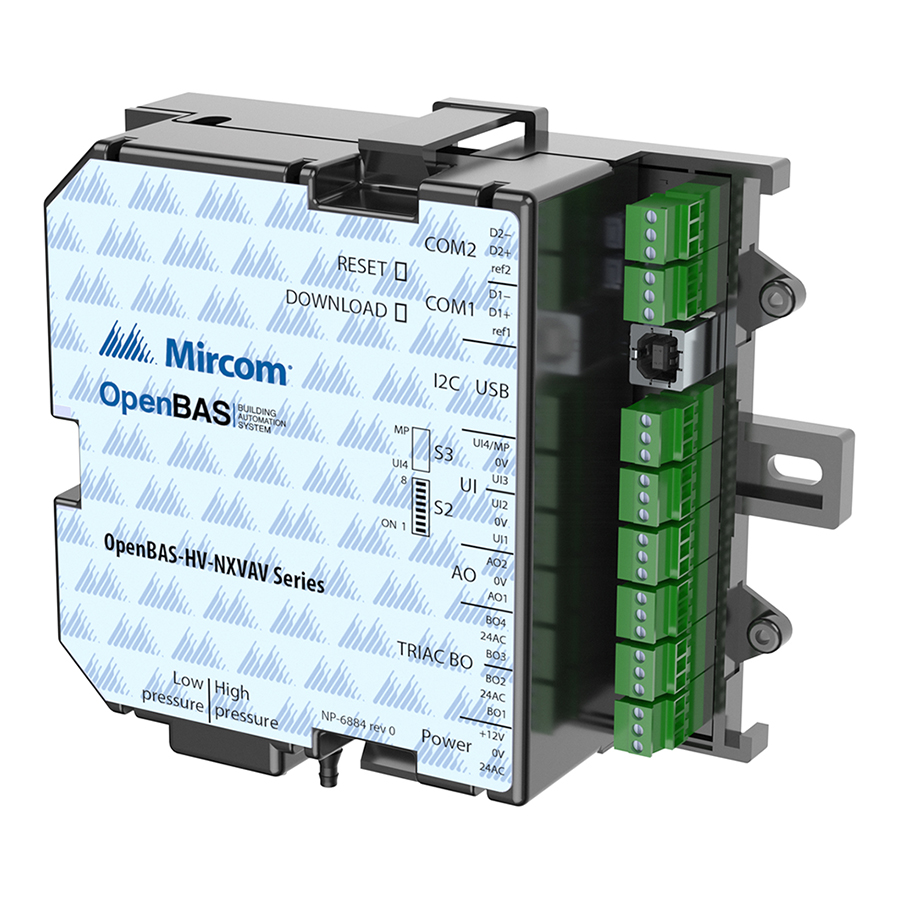

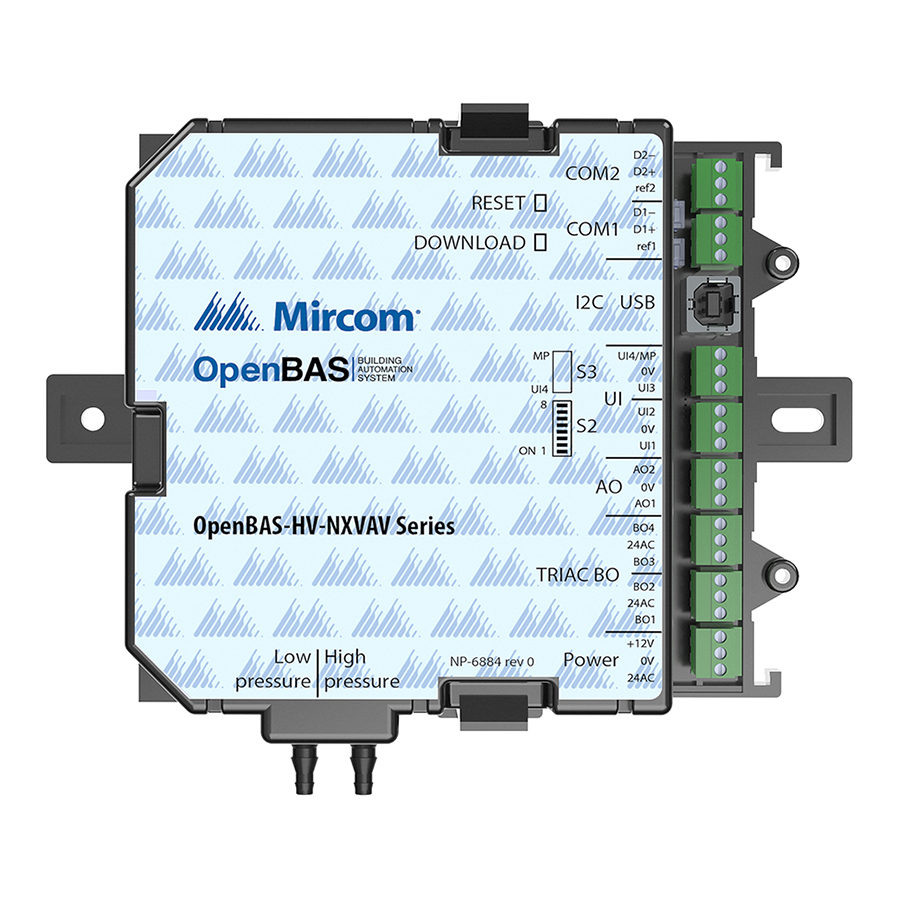

The OpenBAS-HV-NXVAV Series controllers are fully programmable terminal unit controllers designed for various VAV and VVT heating and cooling applications.
Comes preloaded with a VAV cooling control script (with optional reheat) based on ASHRAE Guideline 36.
Supports both script and ladder logic programming through the System Design Studio software (free to download!).
Optional integrated airflow sensor supports pressure-independent control strategies and keeps costs down for pressure-dependent control strategies.

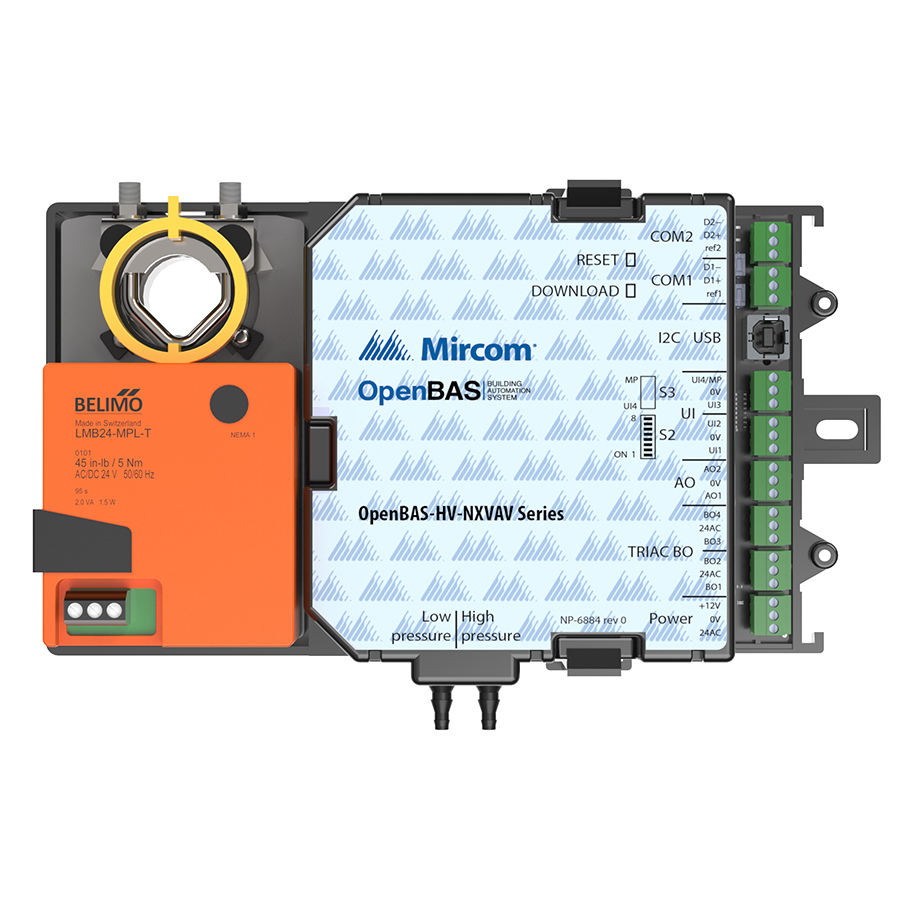

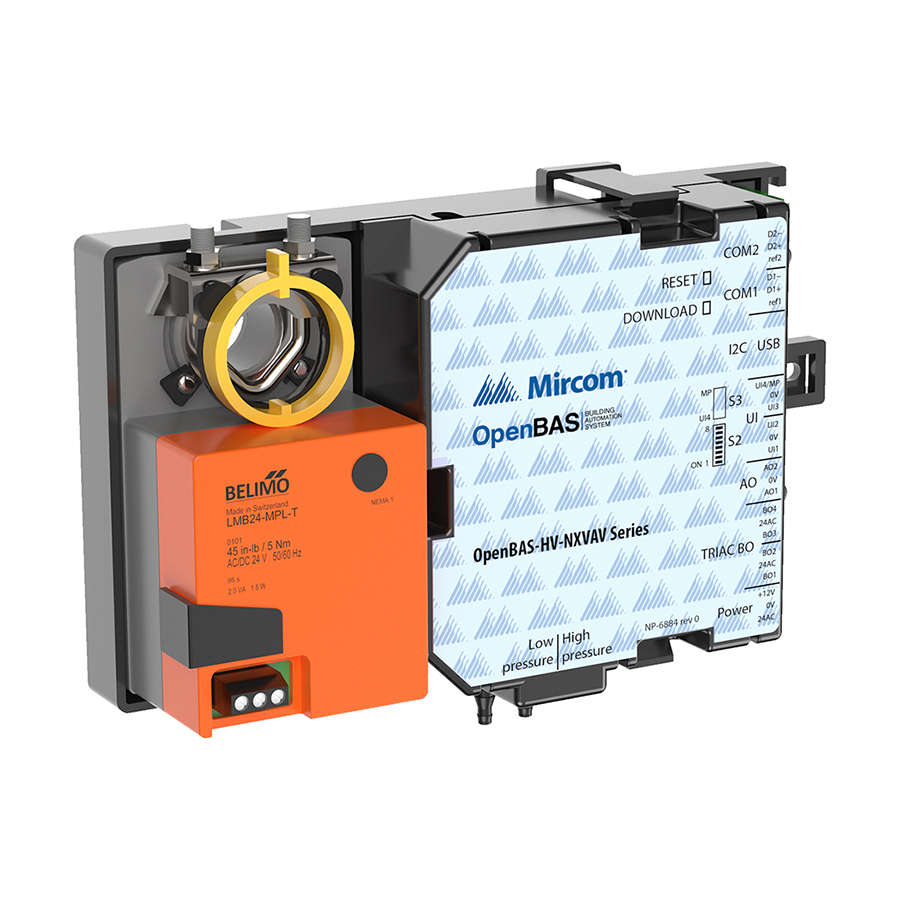

Optional integrated brushless DC damper actuator simplifies installation and integration.
USB port providing local technician access for configuration, commissioning, balancing, and firmware upgrades.
Remote IP access for configuration, commissioning, and balancing is supported through the OpenBAS-NWK-ETH3 Ethernet gateway controller.

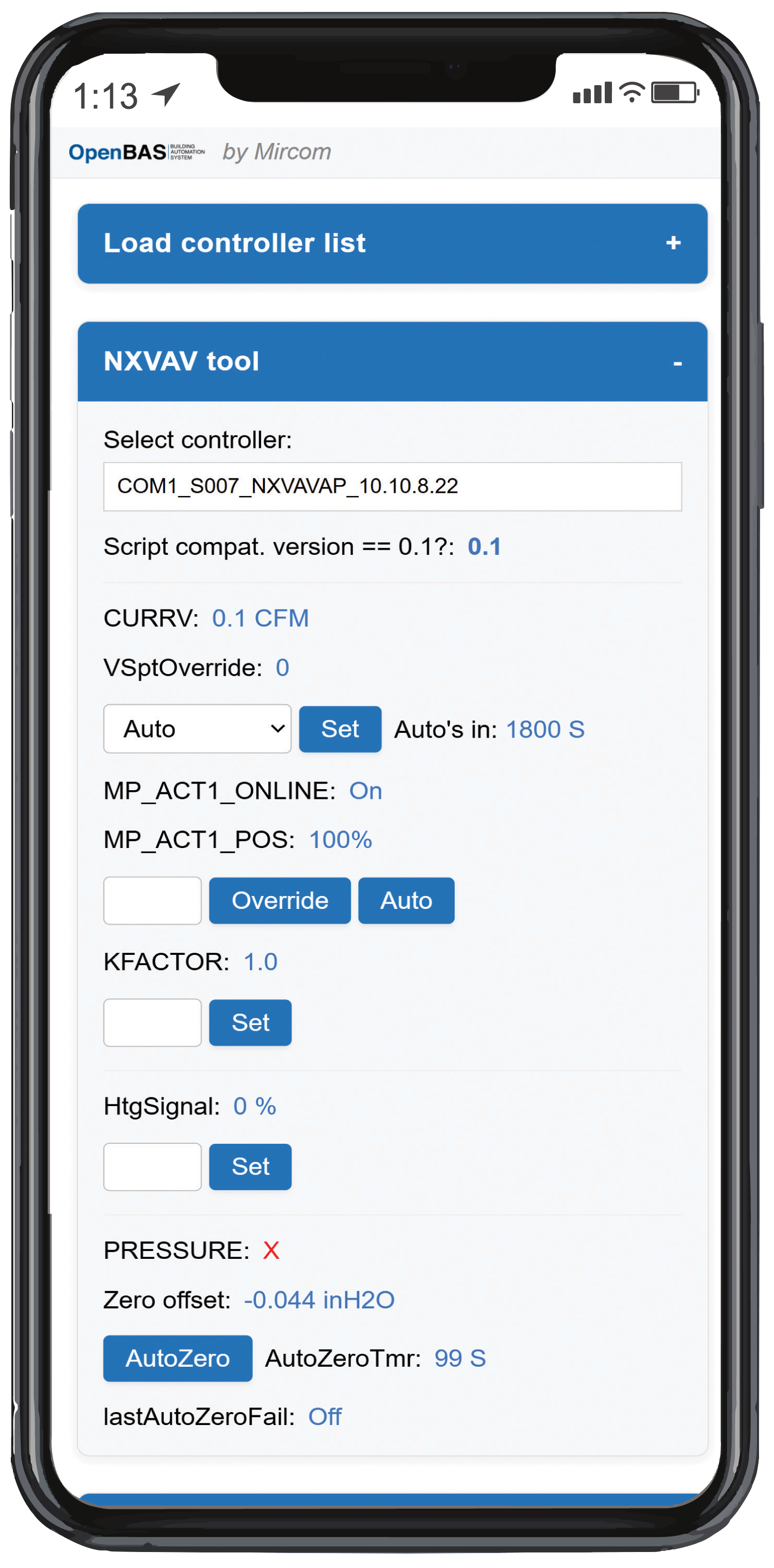

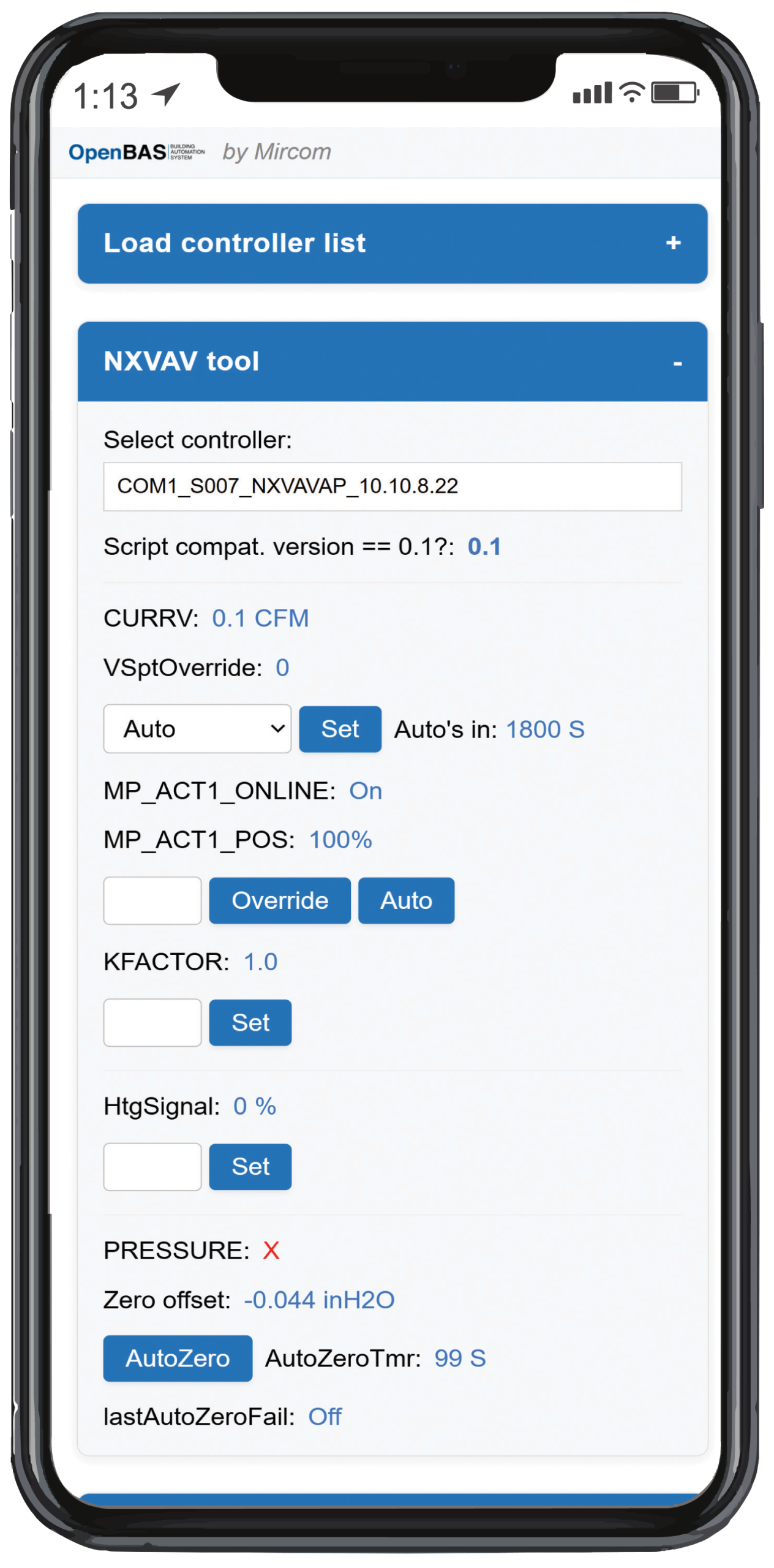

Easily commission and balance through mobile-friendly web pages hosted on an OpenBAS-NWK-ETH3. The web pages can be accessed wirelessly with the addition of a Wifi or LTE router
Support for temperature sensors includes ANY type/brand of thermistor and multiple RTD types.
Supports up to 10 OpenBAS-HV-WLSTH wireless temperature/humidity sensors (via OpenBAS-HV-RF433R).
Supports Belimo’s line of MP-Bus room sensors with or without ePaper touch display.
