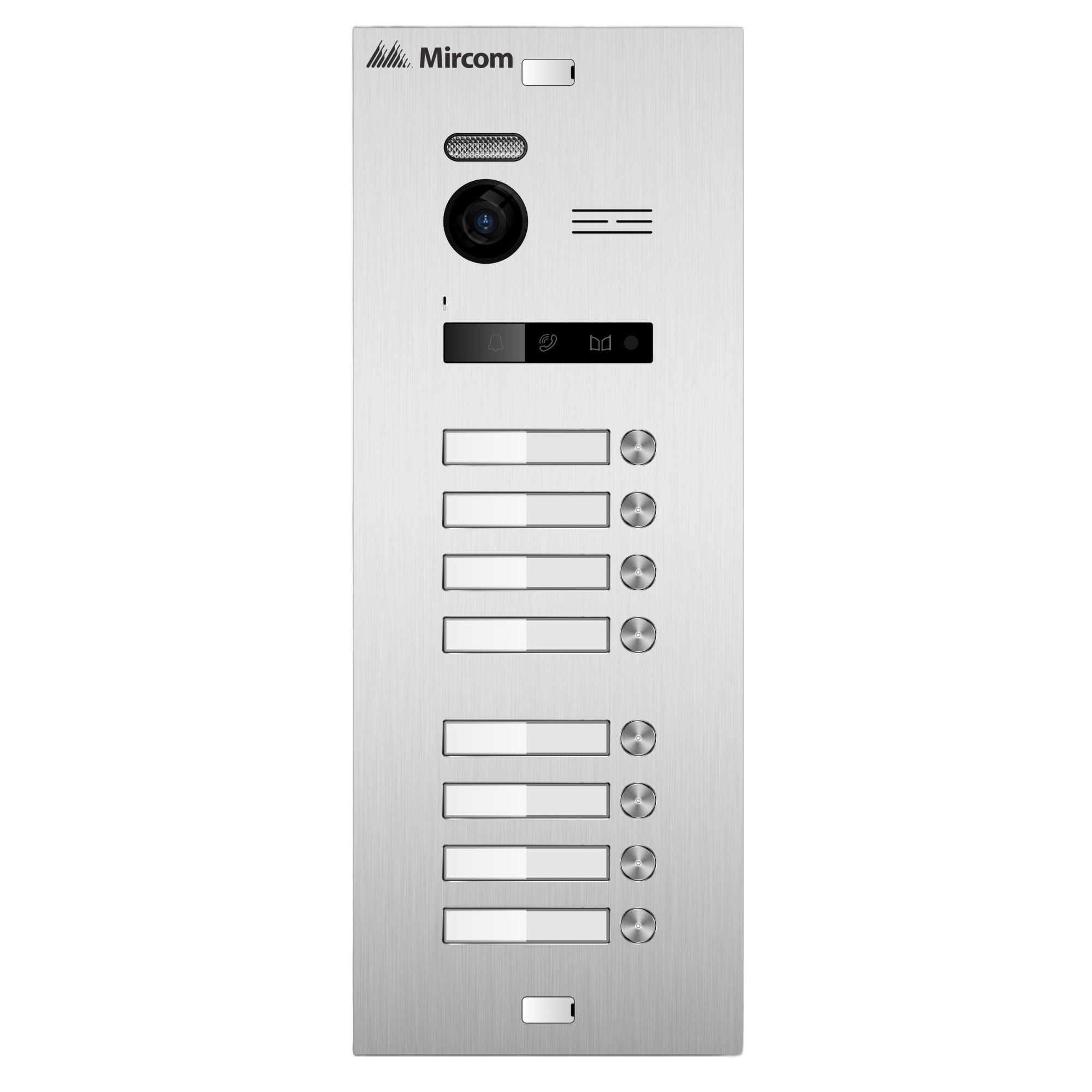

The VX-AP8 and VX-AP12 series provides a robust, modular entrance intercom solution for multi-residential applications. The VX-AP8 combines an 8-button directory with a 2 MP HD wide-angle camera, illuminated nameplates, and SIP-based audio and video communication, while the VX-AP12 expansion panel adds 12 additional call buttons to support larger buildings.
Designed around a simple non-polarized 2-wire BUS architecture, the system offers streamlined installation and integrates door control, request-to-exit and alarm inputs. Its aluminum construction, IP54 weather protection, IK07 impact resistance, and flush-mount design make it well suited for apartment and condominium entrances.
High-quality aluminum housing
2 MP HD camera with 1080p video resolution
150° horizontal wide-angle field of view
Backlit nameplates and illuminated push buttons
White LED illumination for enhanced color visibility in low-light conditions
LED indicators for calling, talking, and door-unlock status
Supports:
1 electric lock
1 automatic door operator
1 request-to-exit input
1 alarm input
SIP-based audio and video communication with compatible SIP devices
RTSP video streaming for compatible video players and recording systems
IP54-rated protection
IK07-rated vandal resistance
Powered through the 2-wire bus
Optional push-button extension panels for expanded resident capacity
