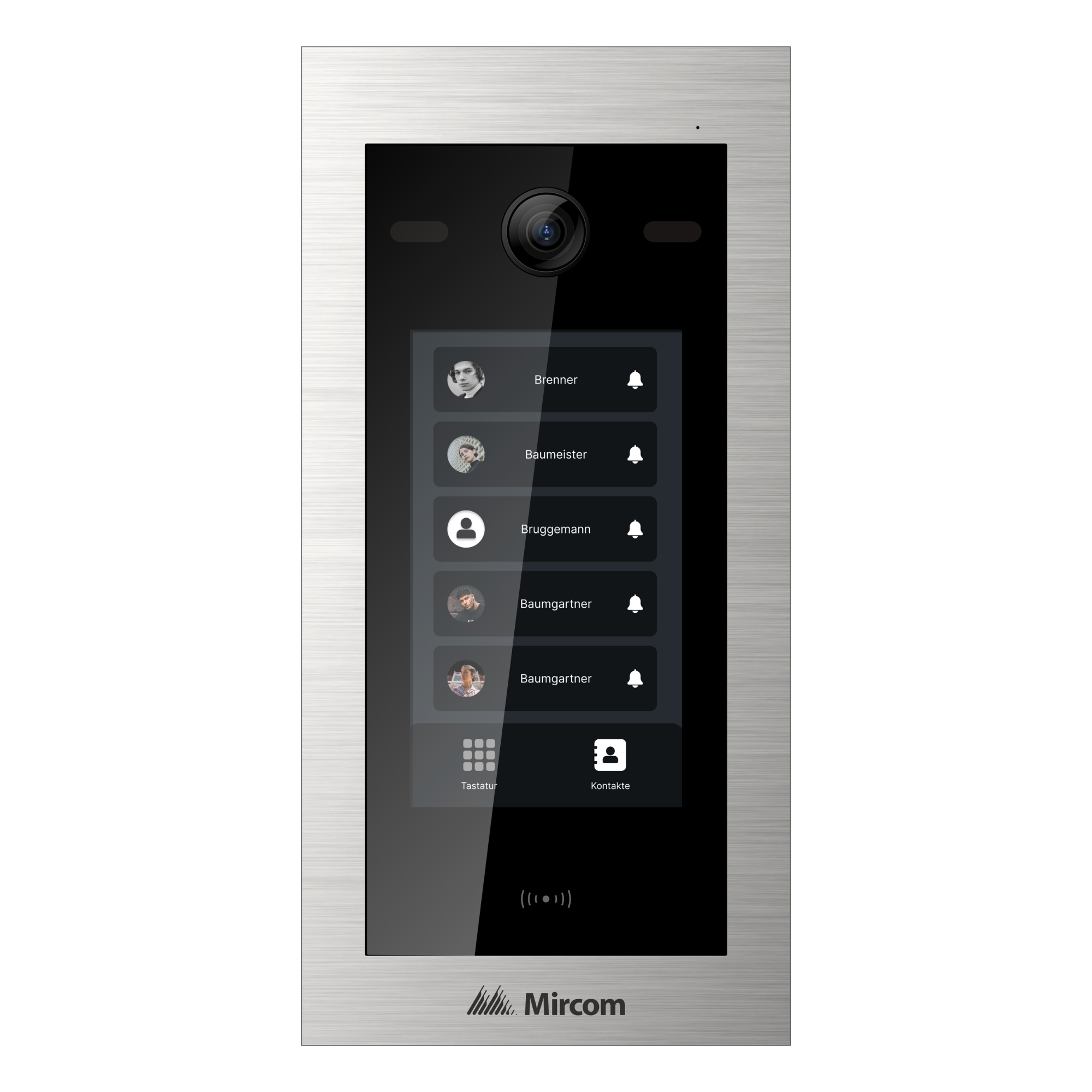

The VX-TP7 is a modern 7-inch touchscreen video intercom panel designed for multi-residential buildings. It combines HD video communication, a customizable resident directory, and multiple access methods including MIFARE® cards, PINs, and QR codes. Its non-polarized 2-wire architecture simplifies installation, while SIP and RTSP support provide flexibility for integration with compatible communication and video systems.
High-quality aluminum-alloy housing
7-inch IPS touchscreen display with 1024 × 600 resolution
2 MP, 1080p camera with a 150° horizontal field of view
IR LEDs with IR-cut filter for enhanced low-light and night visibility
Built-in 13.56 MHz MIFARE® card reader
Multiple access methods, including:
MIFARE® credentials
PIN/password
QR code
One relay output and one electric-lock connection
One request-to-exit input
Tamper alarm support
SD card data backup
SIP audio and video communication with compatible SIP devices
RTSP video streaming for compatible video players and recording systems
Customizable resident directory with resident names and profile images
IP54-rated environmental protection
IK07-rated vandal resistance
Supports both PoE and 2-wire bus power
Flush-mount and surface-mount installation options
