SC-3243-IHS-F28M

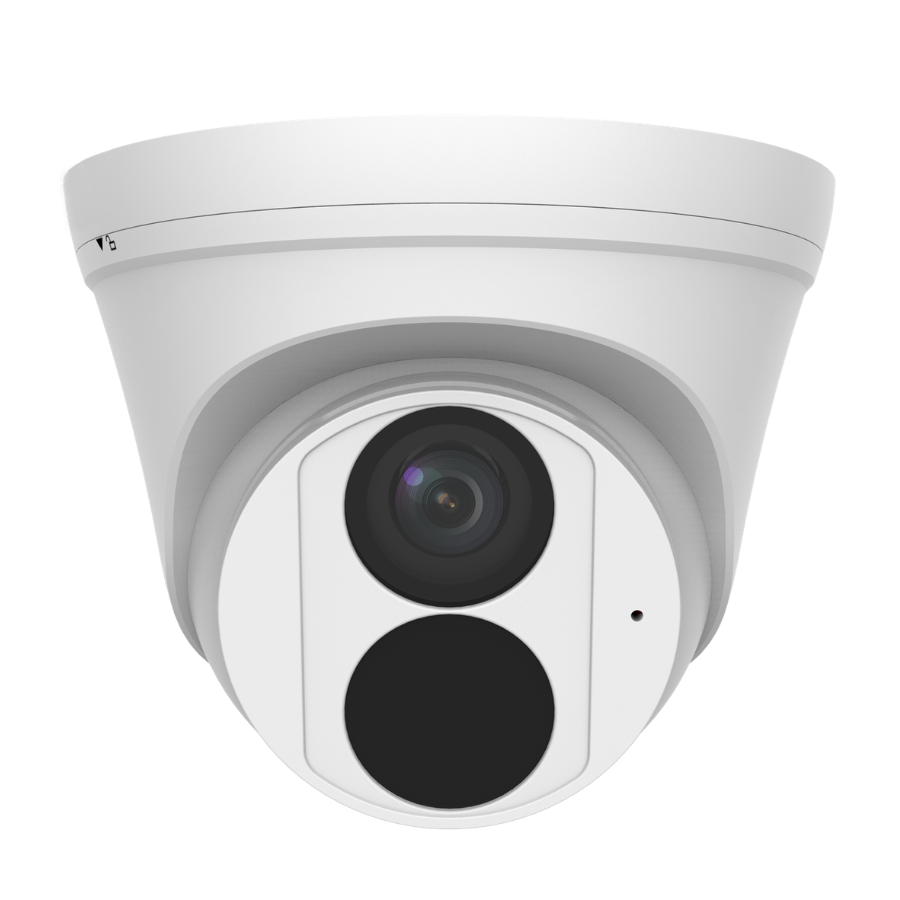

4MP HD Easystar WDR Fixed IR Eyeball Network Camera

PRODUCT INQUIRY

Have a question or need more details? Use the button below to contact us.

Product Inquiry
Categories: ,

4MP HD Easystar WDR Fixed IR Eyeball Network Camera

  • High quality image with 4MP, 1/3″CMOS sensor
  • 4MP (2688*1520)@ 30/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • Easystar technology ensures high image quality in low illumination environment
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built‑in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 512 G Micro SD card
  • IP67 protection
  • Support PoE power supply
  • 3‑Axis
  • Black housing available (2.8MM)
Series Essential
Megapixel 4MP
Product Type Turret
Lens Length Fixed
Compliance IP67, NDAA
Camera Description
Max Resolution 4MP
Sensor 1/3.0″ CMOS
Min. Illumination Colour: 0.003 lux ( F1.6, AGC ON)
0 Lux with IR on
Day/Night IR‑cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
S/N >52dB
WDR 120dB
Lens Description
Focal Length IPC3614SR-ADF28KM-H:2.8 mm
Iris Type Fixed
Iris F1.6
Field of View (H) IPC3614SR-ADF28KM-H:97.0°
Field of View (V) IPC3614SR-ADF28KM-H:52.2°
Field of View (D) IPC3614SR-ADF28KM-H:107.5°
DORI Description
DORI Distance (Lens) IPC3614SR-ADF28KM-H:2.8mm
DORI Distance (Detect) IPC3614SR-ADF28KM-H:63.0m(206.7ft)
DORI Distance (Observe) IPC3614SR-ADF28KM-H:25.2m(82.7ft)
DORI Distance (Recognize) IPC3614SR-ADF28KM-H:12.6m(41.3ft)
DORI Distance (Identify) IPC3614SR-ADF28KM-H:6.3m(20.7ft)
Illuminator Description
Supplemental Light IR
Illumination Distance (IR) 30 m (98.4 ft)
Wavelength 850 nm
IR On/Off Control Auto/Manual
Video Description
Video Compression Ultra 265; H.265; H.264; MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps;
Video Bit Rate 128 Kbps ~ 6144 Kbps
U-code Support
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Dual Streams
Image Description
White Balance Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Events Description
Basic Detection Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection); Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection
General Function Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication
Audio Description
Audio Compression G.711U; G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8KHZ
Storage Description
Edge Storage Micro SD, up to 512 GB
Network Storage ANR; NAS (NFS)
Network Description
Protocols IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; 802.1x; SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T); API; SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
Client UNV‑Link; UNV‑Link Pro; EZStation
Web Browser Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
